Lagrangian Neural Networks

In this tutorial we will explore LNNs. They can be trained to model the Lagrangian of a dynamical system. Here we will consider the example of a double pendulum.

References

We will use the material from the following two resources.

https://diego.assencio.com/?index=1500c66ae7ab27bb0106467c68feebc6

https://colab.research.google.com/drive/1CSy-xfrnTX28p1difoTA8ulYw0zytJkq#scrollTo=9KUarneEapU6

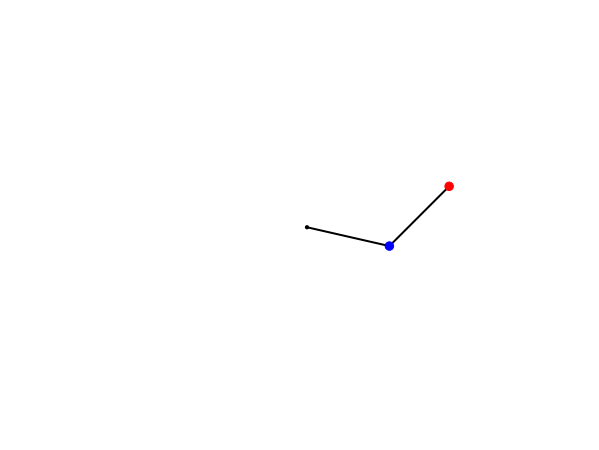

Double Pendulum

Double pendulum is defined by the following equations:


def lagrangian(q, q_dot, m1, m2, l1, l2, g):
  t1, t2 = q     # theta 1 and theta 2
  w1, w2 = q_dot # omega 1 and omega 2

  # kinetic energy (T)
  T1 = 0.5 * m1 * (l1 * w1)**2
  T2 = 0.5 * m2 * ((l1 * w1)**2 + (l2 * w2)**2 +
                    2 * l1 * l2 * w1 * w2 * jnp.cos(t1 - t2))
  T = T1 + T2

  # potential energy (V)
  y1 = -l1 * jnp.cos(t1)
  y2 = y1 - l2 * jnp.cos(t2)
  V = m1 * g * y1 + m2 * g * y2

  return T - V

Solving the Euler-Lagrange equation for the system we get the following set of equations.

Assuming for

Insight

As long as we can put the equation like this, we don’t have to worry about the data of derivative. We can obtain it by solving RHS through diff equation solvers. And further do calculations using this as well.

The following code returns the derivative with respect to the time.


def f_analytical(state, t=0, m1=1, m2=1, l1=1, l2=1, g=9.8):
t1, t2, w1, w2 = state
a1 = (l2 / l1) * (m2 / (m1 + m2)) * jnp.cos(t1 - t2)
a2 = (l1 / l2) * jnp.cos(t1 - t2)
f1 = -(l2 / l1) * (m2 / (m1 + m2)) * (w22) * jnp.sin(t1 - t2) - \
(g / l1) * jnp.sin(t1)
f2 = (l1 / l2) * (w12) * jnp.sin(t1 - t2) - (g / l2) * jnp.sin(t2)
g1 = (f1 - a1 * f2) / (1 - a1 * a2)
g2 = (f2 - a2 * f1) / (1 - a1 * a2)
return jnp.stack([w1, w2, g1, g2])

Dynamics from the time derivative Equation


@partial(jax.jit, backend='cpu')
def solve_analytical(initial_state, times):
  return odeint(f_analytical, initial_state, t=times, rtol=1e-10, atol=1e-10)

odeint

Gives you the solution to the differential equation for any initial value at specific times for any RHS function. (Here f_analytical). So we receive the quadruple solution.

https://docs.scipy.org/doc/scipy/reference/generated/scipy.integrate.odeint.html

Dynamics from the Lagrangian

In order to obtain the trajectory back from the learned Lagrangian Neural Network, is expressed as equations of gradients of our LNN, and integrated twice using odeint — a built in function in script to integrate.


def equation_of_motion(lagrangian, state, t=None):
  q, q_t = jnp.split(state, 2)
  q_tt = (jnp.linalg.pinv(jax.hessian(lagrangian, 1)(q, q_t))
          @ (jax.grad(lagrangian, 0)(q, q_t)
             - jax.jacobian(jax.jacobian(lagrangian, 1), 0)(q, q_t) @ q_t))
  return jnp.concatenate([q_t, q_tt])

def solve_lagrangian(lagrangian, initial_state, **kwargs):
  @partial(jax.jit, backend='cpu')
  def f(initial_state):
    return odeint(partial(equation_of_motion, lagrangian),
                  initial_state, **kwargs)
  return f(initial_state)

Dynamics from the LNN Equation


@partial(jax.jit, backend='cpu')
def solve_autograd(initial_state, times, m1=1, m2=1, l1=1, l2=1, g=9.8):
  L = partial(lagrangian, m1=m1, m2=m2, l1=l1, l2=l2, g=g)
  return solve_lagrangian(L, initial_state, t=times, rtol=1e-10, atol=1e-10)

Normalize


def normalize_dp(state):
  # wrap generalized coordinates to [-pi, pi]
  return jnp.concatenate([(state[:2] + np.pi) % (2 * np.pi) - np.pi, state[2:]])

Runga-Kutta Method


def rk4_step(f, x, t, h):
  # one step of runge-kutta integration
  k1 = h * f(x, t)
  k2 = h * f(x + k1/2, t + h/2)
  k3 = h * f(x + k2/2, t + h/2)
  k4 = h * f(x + k3, t + h)
  return x + 1/6 * (k1 + 2 * k2 + 2 * k3 + k4)

Generate training data


time_step = 0.01
N = 1500
analytical_step = jax.jit(jax.vmap(partial(rk4_step, f_analytical, t=0.0, h=time_step)))

jax.vmap

https://jiayiwu.me/blog/2021/04/05/learning-about-jax-axes-in-vmap.html

https://jejjohnson.github.io/research_notebook/content/tutorials/jax_journey/vmap.html

partial from functools

Returns a function with partial arguments filled up https://docs.python.org/3/library/functools.html

Initial value and time


x0 = np.array([3*np.pi/7, 3*np.pi/4, 0, 0], dtype=np.float32)
t = np.arange(N, dtype=np.float32) # time steps 0 to N

Data generation

x_train is generated by using the function solve_analytical : (Initial state, times) → Integration of dynamics equation (f_analytical).

xt_train is generated by applying f_analytical to x_train


x_train = jax.device_get(solve_analytical(x0, t)) # dynamics for first N time steps
xt_train = jax.device_get(jax.vmap(f_analytical)(x_train)) # time derivatives of each state
y_train = jax.device_get(analytical_step(x_train)) # analytical next step

Question

Note that xt is generated by the applying the RHS function on the solution which was generated by numerically integrating that same function.


noise = np.random.RandomState(0).randn(x0.size)
t_test = np.arange(N, 2*N, dtype=np.float32) # time steps N to 2N
x_test = jax.device_get(solve_analytical(x0, t_test)) # dynamics for next N time steps
xt_test = jax.device_get(jax.vmap(f_analytical)(x_test)) # time derivatives of each state
y_test = jax.device_get(analytical_step(x_test)) # analytical next step

Network

Replace the Lagrangian with a parametric model. Here the function learned_lagrangian is a function of learnable params and returns the Lagrangian function defined inside it as a neural network.


def learned_lagrangian(params):
  def lagrangian(q, q_t):
    assert q.shape == (2,)
    state = normalize_dp(jnp.concatenate([q, q_t]))
    return jnp.squeeze(nn_forward_fn(params, state), axis=-1)
  return lagrangian


init_random_params, nn_forward_fn = stax.serial(
    stax.Dense(128),
    stax.Softplus,
    stax.Dense(128),
    stax.Softplus,
    stax.Dense(1),
)

Loss function


def loss(params, batch, time_step=None):
  state, targets = batch
  if time_step is not None:
    f = partial(equation_of_motion, learned_lagrangian(params))
    preds = jax.vmap(partial(rk4_step, f, t=0.0, h=time_step))(state)
  else:
    preds = jax.vmap(partial(equation_of_motion, learned_lagrangian(params)))(state)
  return jnp.mean((preds - targets) ** 2)
